Built for Lifesaving Impact—Trusted by Hospitals Worldwide

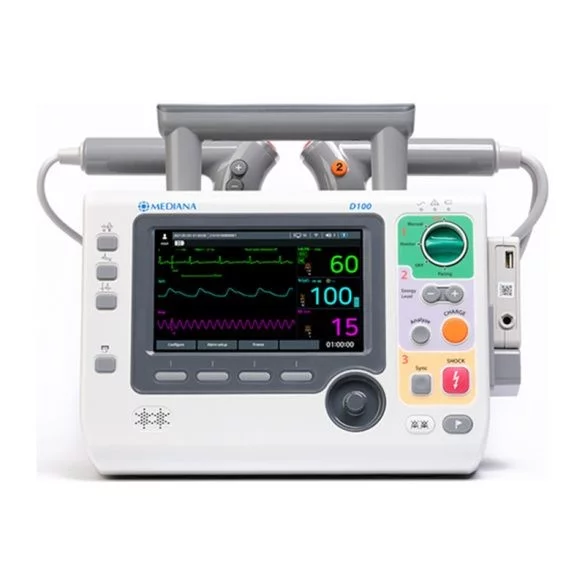

D-100
MODEL: D-100
Description:
The D-100 defibrillator is battery powered, so it can also be used for transport purposes. Its small size helps to make the professional user mobile.
This defibrillator has 3/5 channel ECG monitoring, which can be printed if needed or connected to the modern central computer system.
Blades and electrodes are suitable for resuscitating both a child and an adult.
Specifications:
7” TFT LCD
Defibrillation with paddles
3/5 Lead ECG Monitoring
Manual and AED Operation
2-in-1 pads for both adult &
pediatric patients.
A minimum of 200 shocks at 200 J
Pacing (Optional)
5 Hours operating time
Light Weight 5.5 kg
Certificate CE/ISO

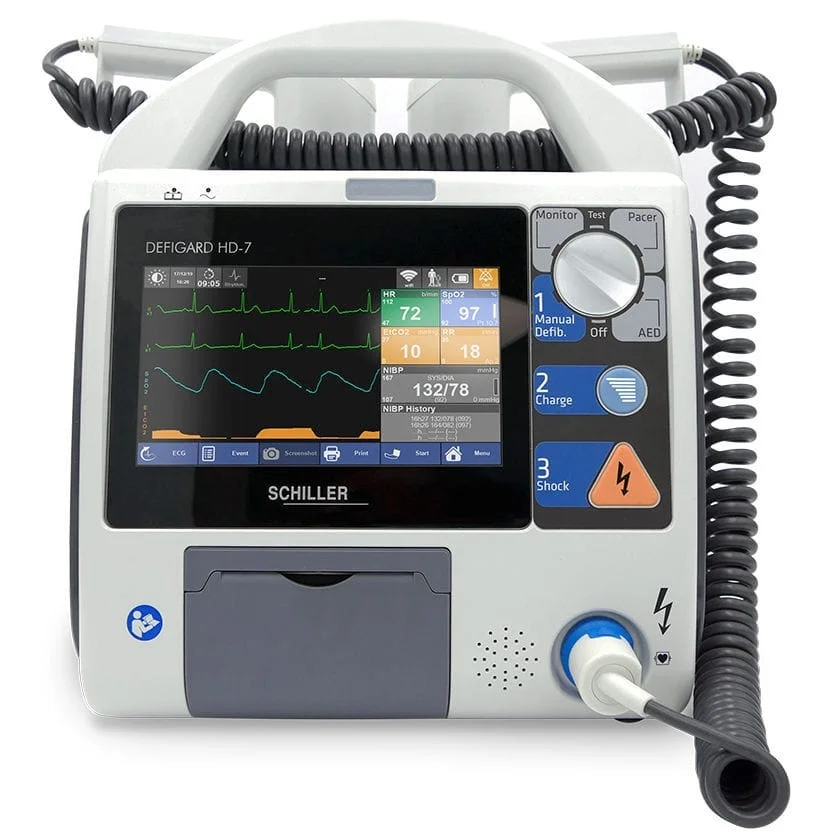

DEFIGARD HD-7
The DEFIGARD HD-7 is a concentration of SCHILLER’s long and proven experience in defibrillation, ECG and connectivity. Available with defibrillation paddles or pads, the DEFIGARD HD-7 will support all healthcare professionals.
The DEFIGARD HD-7 is designed to be intuitive, with a large 7” touch screen as well as its one-step mode selector. The Touch’n’Save interface allows direct access to the desired feature without losing time. The device automatically transmits self-test results and facilitates device pool management thanks to its remote software and configuration updates.
Features – 4 modes: monitoring, manual defibrillation, AED and pacer as Standard
- Single connector for defibrillation paddles, pads or spoons
- Internal defibrillation mode (optional) for open-heart surgical procedures
- CPR feedback-USB and Wi-Fi data transmission
- Remote software and configuration updates
- Automatic self-test transmission
- Large 7” touch screen
- 6-lead ECG: SCHILLER technology
- Non-invasive blood pressure: SCHILLER technology (optional)
- SpO2: MASIMO or Nellcor technology (optional)
- EtCO2: MASIMO technology (side stream) (Optional)
- Integrated large 3-channel printer

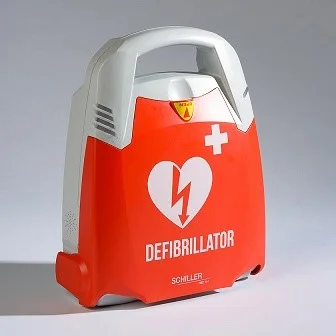

FRED PA-1
By lifting the device cover, the FRED PA-1 starts up immediately and guides the rescuer step by step during the entire resuscitation process. The ideal defibrillator for public access areas.
- Ease of use: interface with 1-2-3 steps
- Pre-connected electrodes for faster application to the patient’s chest
- Automatic self-tests for detection of electrode expiration and battery capacity
- Trilingual
- Chest compression assistant with metronome and FreeCPR (feedback on the frequency)
- LifeDataNet G2: Simplifying AED fleet management thanks to an online dashboard to remotely check the status of the device or the consumables
