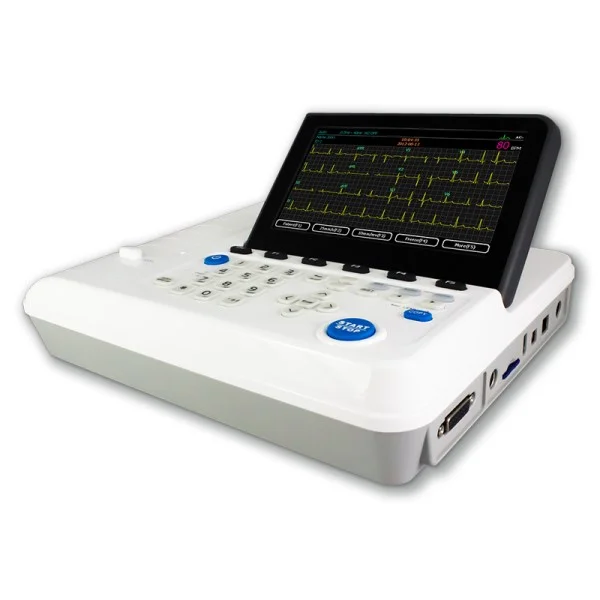

CARDIO E3
MODEL: CARDIO E3
3-channel ECG with a 7-inch LCD color screen.
• 12 simultaneous derivatives, including ECG interpretation program
• Sampling frequency 1,000 Hz
• Pacemaker detection 10,000 Hz
• Mains filter for suppressing 50/60 Hz interference
• Registration speed 5/10/25/50 mm/s (man. print)
• Sensitivity adjustable: 2.5/5/10/20 mm/mV automatic operation or manual
Including the following languages available: German, English, Spanish, French, Italian, Portuguese, Romanian, Turkish
Technical details:
Dimensions: 310 x 244 x 65 mm (WxHxD)
Weight: about 2.1 kg
Screen: 7″ LCD color screen, 800 x 480 pixels
Storage: SD card, USB stick
Safety level: Class 1, Type CF
CMRR: >98 db
Included are:
• ECG patient cables
• power cable
• 6x chest wall suction electrodes
• 4x extremity clamp electrodes
• user manual
• paper

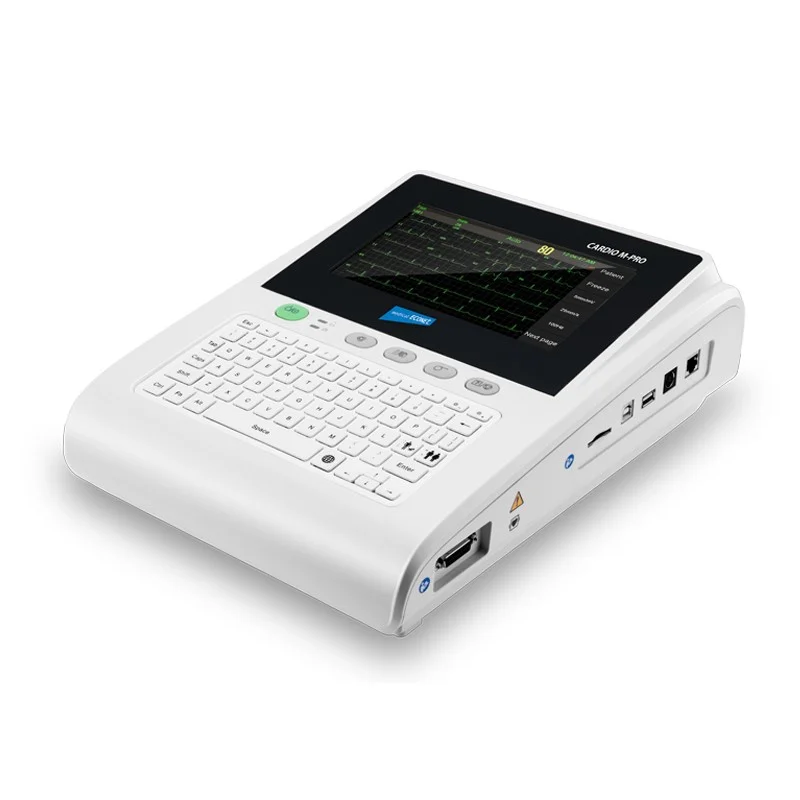

CARDIO M PRO
• 12, 6 and 3 channel resting ECG
- 8″ LCD color touch screen
- Write-out of all 12 channels among each other or in packages (2×6, 3×4)
- Clearly arranged, high printout in DIN A4 format
- Printout of rhythm derivation for 3- and 6-channel settings
- Manual ECG monitoring or 10 seconds memory ECG for interpretation
- Automatic interpretation recommendation
- Interpretation function distinguishes between 25 diagnostic cases based on Minnesota protocol
Measurement parameters: HF, PR Interval, Duration of QRS-complex, QT/QTC, electrical R/QRS/T-axis, RV5/SVI amplitude
Battery: Lithium-ion—approx. 5 hours runtime when fully charged or up to 500 printed ECG reports in automatic mode
Connection: 1x SD card / 2x USB / 1x RJ-45 (network)
Included are:
ECG gel
ECG patient cable
Power cord
6x chest wall suction electrodes
4x extremity clamp electrodes
Manual
Paper
