Built for Lifesaving Impact—Trusted by Hospitals Worldwide

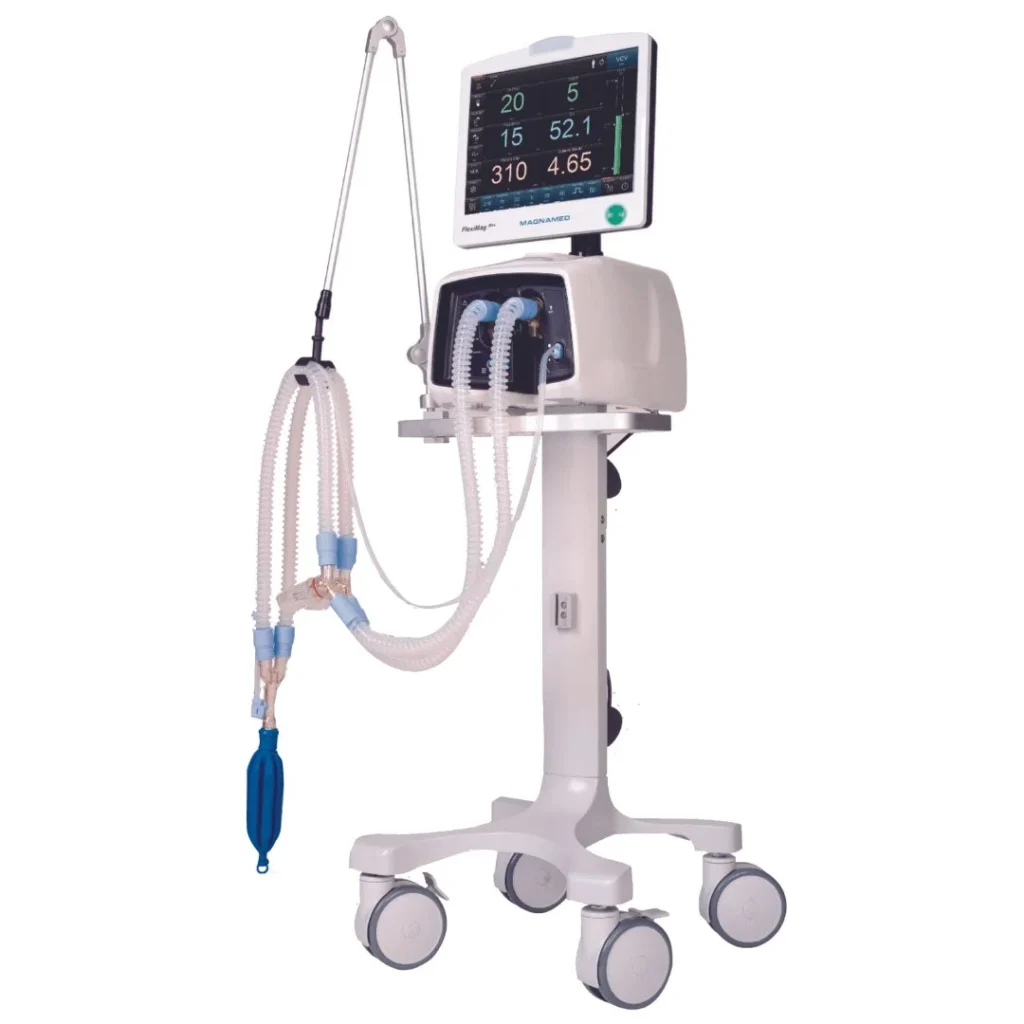

FLEXIMAG MAX-300

MODEL: FLEXIMAG MAX-300

Specifications:

Model: Fleximag Max-300

MAGNAMED

Made in Brazil

Type and Size : TFT-LCD touchscreen 15″

With Turbine (Flow Air )

High performance ventilator

Standard for Adult + Child + Neonate

Advanced Communication system

Tidal Volume : 2 to 3.000ml

Respiratory rate : 0 to 200 rpm

Inspiratory flow : 1 to180L/min

Rise time : 0 to 2.0 s

Inspiratory time : 0.05 to 30s

Inspiratory pressure : 0 to 120 cmH2O (or hPa or mbarl)

Peep : 0 to 50 cmH20 (or hPa or mbar)

Support Pressure/ps : 0 to 50 cmH2O (or hPa or mbarl)

Flow cycling (% of peak flow) : 5 to 80 %

Pressure trigger : 0.0 to 20cmH2O (or hPa or mbar)

Flow trigger : 0.0 to 30L/min

Ratio I:E : 1:599 to 299:1

O2 concentration : 21 to 100%

Type of inspiratory flow : Constant, decelerating, accelerating and sine

Inspiratory and expiratory pause : 0.1 to 30 s

Weight : 20kg

Dimension WxHxD : 453*1427*544mm

Electrical power supply : 100 to 240 V, 50/60 Hz

Battery : 210 minutes

Certifications : CE/ISO
